1, heat insulation frame sun room, exclusive heat insulation strip 20mm
2, elevation frame beam gutter position depth of 200mm
3, frame type lap sun room, beam lap main beam, to achieve frame stability
4, the beam and the main beam are provided with condensed water, dew collection channels.
5, special sun room skylight structure, to achieve electric skylight opening
6, optional skylight electric screen to achieve mosquito prevention design
7, outdoor can be applied to achieve electric sunshade system to achieve sunshade
8. Drainage gutter downspout hiding design
9, beam drainage using low-pressure version drainage, make the drainage more smooth
10. The inside and side of the sun room can be combined with the existing products of WAZ to achieve different styles
11. Can upgrade the use of Degao top for capping design and application

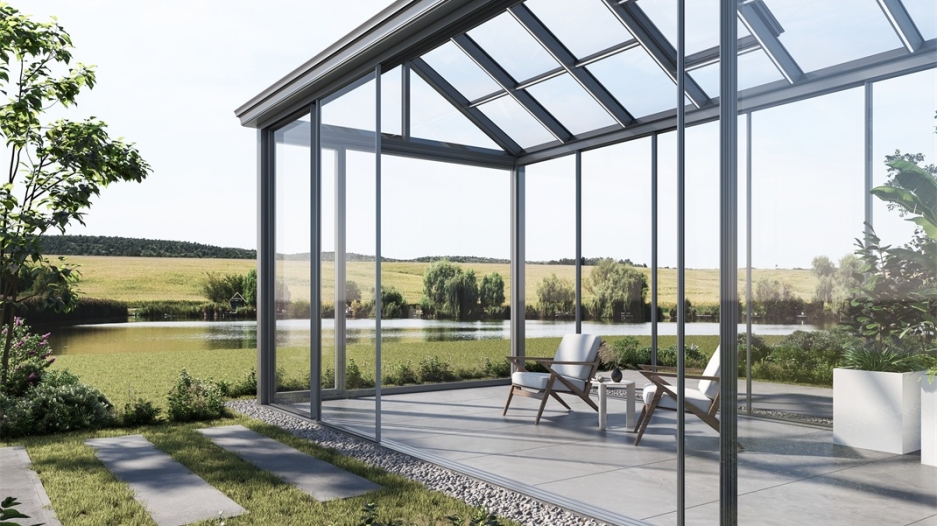

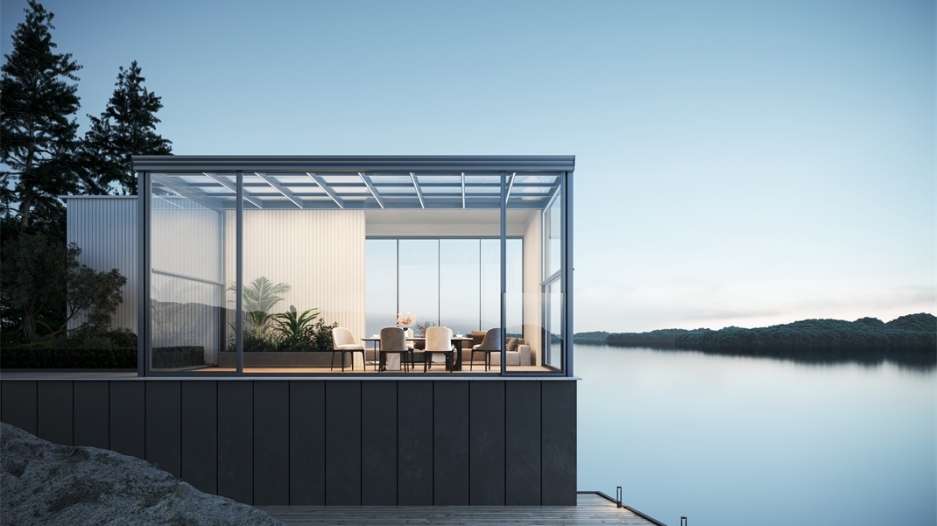

It belongs to the frame type sun room structure
Curtain wall special insulation strip 20mm, 22,24,26,28, etc
Fan glass configuration: 6+0.76pvb+6+15+6 etc
Wall thickness 3.0mm~6.0mm
The inner depth of the main beam is 120mm
Main beam internal visual surface 50mm
Main beam external visual surface 45mm
Beam interior visual surface 50mm
Beam external visual surface 45mm
Beam inside depth 66mm
